| Mechanical Behavior | |||
| 型号 Type | 抗拉强度(N/mm2) Tensile Strength | 伸长率(%) Elongation | 屈服强度(N/mm2) Yield Strength |
| FB090 | 450 | 55 | 250 |
| FB092 | 300 | 55 | 250 |
| FB08G | 420 | 5 | 230 |
| FB09G | 450 | 10 | 250 |
| Physical Properties | |||||
| 型号 Type | 比重G/cm3 Speciflc Gravity | 热胀系数20-300 Linear Expansion 0C10-6/0C | 导热系数 20 Heat Conductivity CW0/m.k | 导电率 20 Electric rate Cm/onm.mm2 | 弹性模量 Elastic Modulus KN/mm2 |
| FB090 | 8.9 | 18.2 | 60 | 6.5 | 115 |
| FB092 | 8.9 | 18.2 | 60 | 6.5 | 115 |
| FB08G | 7.8 | 22 | 70 | 7.8 | 108 |
| FB09G | 8.0 | 18.2 | 60 | 6.5 | 115 |
| Friction Performance | ||||
| 型号 Type | 最大动载能力 Max.Dynamic Load (N/mm2) | 最高滑动速度 Max.Speed (no,oil) (无油)(m/s) | 最高滑动速度 Max.Speed (oil) (有油)(m/s) | 适用温度范围(℃) Temp. |
| FB090 | 75 | / | 2.5 | -80～+200 |
| FB092 | 60 | / | 2.5 | -100～+200 |
| FB08G | 65 | 0.4 | 4 | -100～+260 |
| FB09G | 65 | 0.2 | 4 | -100～+260 |
| Bearing Hardness | ||
| 型号 Type | 类别 Ltem | 硬度 Hardness |
| FB090 | 标准(Standard) | 90～120 |
| FB092 | 特殊(Special) | 125～155 |
| FB08G | 标准(Standard) | 60～90 |
| FB09G | 标准(Standard) | 90～120 |
| FBB090 | 标准(Standard) | 70～100 |
| Bearing Material | |||||||||
| 型号 Type | 类别 Ltem | 牌号 Material | 材质成分(%) Composition | ||||||
| CU | SN | Pb | Zn | P | 杂质(Other) | ||||
FB090 FB092 | 标准(Standard) | CuSn6.5P | 余量 (Remainder) | 6～7 | — | — | 0.1～0.25 | ≤0.1 | |
| 特殊Ⅰ(SpecialⅠ) | CuSn8P | 余量 (Remainder) | 7～9 | — | — | 0.01～0.35 | ≤0.2 | ||
| 特殊Ⅱ(SpecialⅡ) | H68(CuZn31Si) | 66～70 | — | ≤0.8 | 余量 (Remainder) | — | ≤0.5 | ||
| FB08G | 标准(Standard) | CuSn10Pb10+Gr | 余量 (Remainder) | 9～11 | 9～11 | — | — | ≤0.5 | |
| FB09G | 标准(Standard) | CuSn6.5P+Gr | 余量 (Remainder) | 6～7 | — | — | 0.1～0.25 | ≤0.1 | |
| 标准(Special) | CuSn8P+Gr | 余量 (Remainder) | 7～9 | — | — | 0.01～0.35 | ≤0.2 | ||

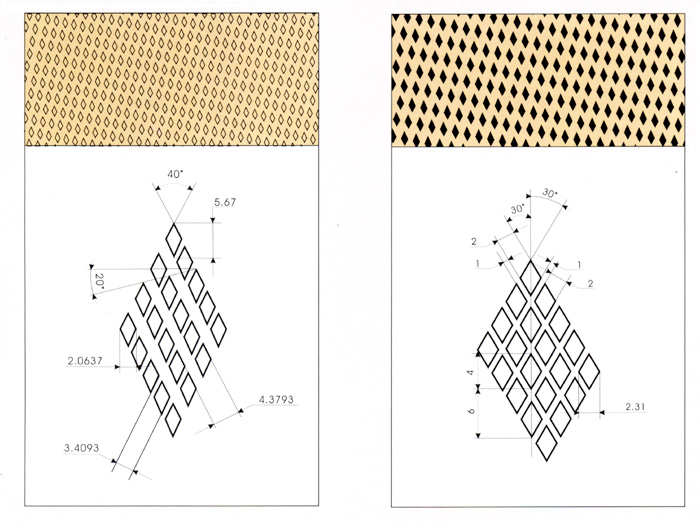

| FB090油穴排布 | ||
 | ||
| 型号 Type | 型号壁厚规格 Thickness | 油穴深度 Oil Depth |
| FB090 | 1mm | 0.3～0.4mm |
| 1.5mm | 0.4～0.5mm | |
| 2mm | 0.5～0.6mm | |
| 2.5mm | 0.6～0.7mm | |
FB09G FB08G | 0.65mm | 0.15～0.3mm |
| 1mm | 0.3～0.4mm | |
| 1.5mm | 0.4～0.5mm | |
| 2mm | 0.4～0.5mm | |
| 2.5mm | 0.4～0.5mm | |
